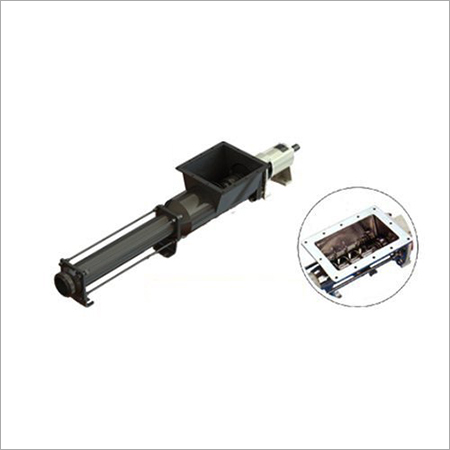

Wide Throat Single Screw Pump

Product Description

We are presenting the globe's best Wide Throat Single Screw Pump to give excellent performance with maximum efficiency in various difficult fluid handling applications. With maximum flow rate of 200 m3 / hr, and pressure up to 36 bar, this kind of pump performs continuously without any hassle. Most widely demanded in chemical, food, waste water, and allied industries, the pump is energy efficient, cost-effective, robust in construction, and requires less maintenance after longer performance. The Wide Throat Single Screw Pump varies in models, types and configurations.

• Available with twin paddle bridge breaker provision that can handle highly difficult media of non-flowing properties as well as advanced solid content.
• Customized standard hopper is offered.
• Enables gravity flow of highly thick materials on to the augur-on-coupling linear unit so as to thrust the substance to its pumping element.
• Offered in close coupled as well as bare shaft design.
• Provided with shaft sealing options, if required.

• Capacities up-to 200 m3/hr
• Pressures up-to 36 bar

Material Options

• Coupling Rod: Alloy Steel, Stainless Steel.
• Other Exotic Materials: Alloy 20, Duplex, Super Duplex, Haste Alloy.
• Protective Coatings: Rubber Lining, Epoxy Coatings.
• Rotor Surface Coatings: Ceramic Coatings, Tungsten Carbide, Hard Chrome Plating.
• Rotor: Tool Steel, Case Hardened Steel, Alloy Steel, Stainless Steel.
• Shaft: Alloy Steel, Stainless Steel.
• Stator: Chloro-Sulphonated Rubber, Natural, Nitrile, High Nitrile, Epdm, Fluoroelastomer, Aflas, Hnbr.
• Wettable Housing Components: Cast Stainless Steel, Cast Iron,  Fabricated Steel, Fabricated Stainless Steel.

Product Details of Wide Throat Single Screw Pump-
